STFU10NK60Z Datasheet - STMicroelectronics

STFU10NK60Z, N-channel MOSFET

STFU10NK60Z N-channel 600 V, 0.68 Ω typ., 10 A, SuperMESH™ Power MOSFET in a TO-220FP ultra narrow leads package Datasheet - production data 3 2 1 T.
This high voltage device is a Zener-protected N-channel Power MOSFET developed using the SuperMESH™ technology by STMicroelectronics, an optimization.

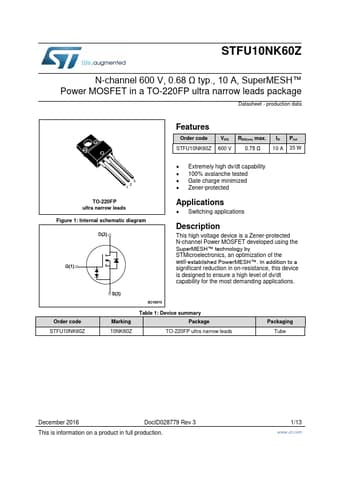

Datasheet Preview Page 1

STFU10NK60Z-STMicroelectronics.pdf

Preview of STFU10NK60Z PDF
STFU10NK60Z Datasheet Preview Page 2 STFU10NK60Z Datasheet Preview Page 3

Datasheet Details

Part number:

STFU10NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

589.02 KB

Description:

N-channel MOSFET

Features

* Order code VDS RDS(on) max. ID Ptot STFU10NK60Z 600 V 0.75 Ω 10 A 35 W
* Extremely high dv/dt capability
* 100% avalanche tested
* Gate charge minimized
