STFPC320 - Front panel controller/driver

STMicroelectronics

The STFPC320 by STMicroelectronics is a Front panel controller/driver. Below is the official datasheet preview.

📥 Download Datasheet

STFPC320 Front panel controller/driver by STMicroelectronics - Datasheet Preview — Official preview page of the **STFPC320** Front panel controller/driver datasheet (STMicroelectronics).

Datasheet Details

Part number	STFPC320
Manufacturer	STMicroelectronics
File Size	0.97 MB
Description	Front panel controller/driver
Datasheet	STFPC320_STMicroelectronics.pdf

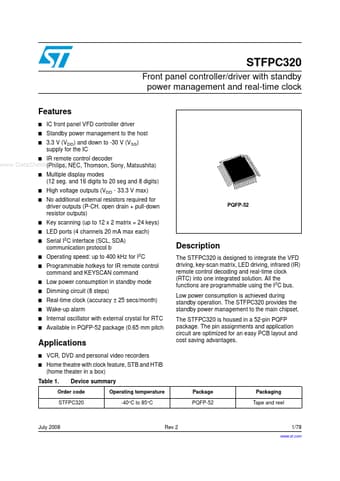

Additional preview pages of the STFPC320 datasheet.

STFPC320 Product details

Description

The STFPC320 is designed to integrate the VFD driving, key-scan matrix, LED driving, infrared (IR) remote control decoding and real-time clock (RTC) into one integrated solution.

Features

IC front panel VFD controller driver Standby power management to the host 3.3 V (VDD) and down to -30 V (VSS) supply for the IC IR remote control decoder Multiple display modes (12 seg. and 16 digits to 20 seg and 8 digits) High voltage outputs (VDD - 33.3 V max) No additional external resistors required for driver outputs (P-CH. open drain + pull-down resistor outputs) Key scanning (up to 12 x 2 matrix = 24 keys) LED ports (4 channels 20 mA max each) S.
