STF6NK70Z - N-channel Power MOSFET

STF6NK70Z Description

STP6NK70Z STF6NK70Z - STW6NK70Z N-channel 700V - 1.5Ω - 5A - TO-220/TO-220FP Zener-protected SuperMESH™ Power MOSFET General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STF6NK70Z Features

* Type STP6NK70Z STF6NK70Z STW6NK70Z VDSS (@Tjmax) 700 V 700 V 700 V RDS(on) < 1.8 Ω

STF6NK70Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
* Switching application Order codes Part number STP6NK70Z STF6NK70Z STW6NK70Z Marking P6NK70Z F6NK70Z W5NK90Z Package TO-220 TO-220FP TO-247 Packaging Tube Tube Tube August 2

📥 Download Datasheet

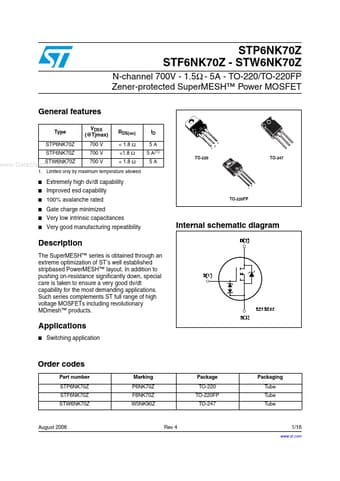

Preview of STF6NK70Z PDF
datasheet Preview Page 2 datasheet Preview Page 3
