STF2907A - SMALL SIGNAL PNP TRANSISTOR

📥 Download Datasheet

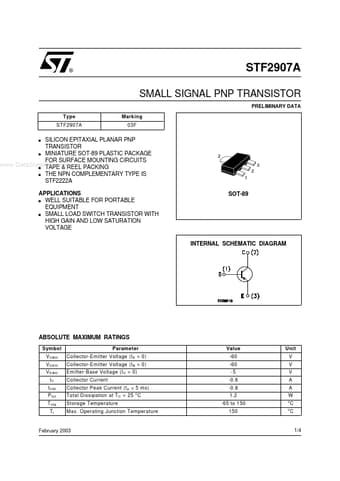

Datasheet preview – STF2907A

Datasheet Details

Part number STF2907A
Manufacturer STMicroelectronics
File Size 60.04 KB
Description SMALL SIGNAL PNP TRANSISTOR
Datasheet download datasheet STF2907A Datasheet
Additional preview pages of the STF2907A datasheet.

📁 Similar Datasheet

  • STF201-22 - USB Downstream Post Filter & TVS (Semtech Corporation)
  • STF201-30 - USB Downstream Post Filter & TVS (Semtech Corporation)
  • STF202-22 - USB Upstream Port Filter & TVS (Semtech Corporation)
  • STF202-22 - USB Filter (ON Semiconductor)
  • STF202-22T1G - USB Filter (ON Semiconductor)
  • STF202-30 - USB Upstream Port Filter & TVS (Semtech Corporation)
  • STF20200 - SCHOTTKY RECTIFIER (SMC Diode)
  • STF2045C - SCHOTTKY RECTIFIER (SMC Diode)
  • STF2060C - SCHOTTKY RECTIFIER (SMC Diode)
  • STF2060CR - SCHOTTKY RECTIFIER (SMC Diode)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
® STF2907A SMALL SIGNAL PNP TRANSISTOR PRELIMINARY DATA Type STF2907A s Marking 03F SILICON EPITAXIAL PLANAR PNP TRANSISTOR s MINIATURE SOT-89 PLASTIC PACKAGE FOR SURFACE MOUNTING CIRCUITS www.DataSheet4U.com s TAPE & REEL PACKING s THE NPN COMPLEMENTARY TYPE IS STF2222A APPLICATIONS WELL SUITABLE FOR PORTABLE EQUIPMENT s SMALL LOAD SWITCH TRANSISTOR WITH HIGH GAIN AND LOW SATURATION VOLTAGE s SOT-89 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC I CM P tot T stg Tj Parameter Collector-Emitter Voltage (I E = 0) Collector-Emitter Voltage (I B = 0) Emitter-Base Voltage (I C = 0) Collector Current Collector Peak Current (t p < 5 ms) Total Dissipation at T C = 25 o C Storage Temperature Max. Operating Junction Temperature Value -60 -60 -5 -0.6 -0.8 1.
