STF23N80K5 - N-channel Power MOSFET

STF23N80K5 Description

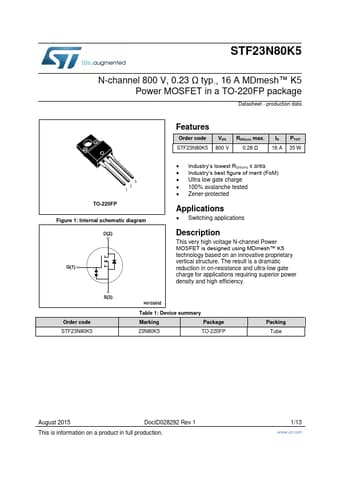

STF23N80K5 N-channel 800 V, 0.23 Ω typ., 16 A MDmesh™ K5 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Internal .
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STF23N80K5 Features

* Order code STF23N80K5 VDS 800 V RDS(on) max. 0.28 Ω ID 16 A PTOT 35 W
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra low gate charge
* 100% avalanche tested
