STF17N80K5 - N-channel Power MOSFET

STF17N80K5 Description

STF17N80K5 N-channel 800 V, 0.29 Ω typ., 14 A MDmesh™ K5 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Internal .
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STF17N80K5 Features

* Order code STF17N80K5 VDS 800 V RDS(on) max. 0.34 Ω ID 14 A
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra-low gate charge
* 100% avalanche tested

📥 Download Datasheet

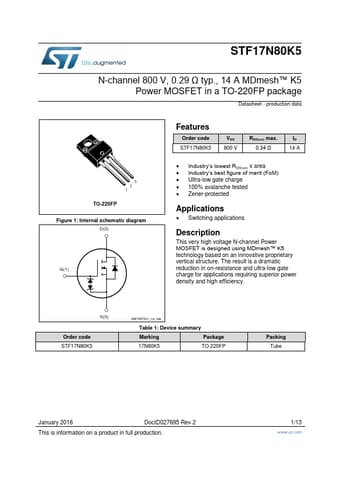

Preview of STF17N80K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
