STEL12H24 Electronic switch

STEL12H24 Description

Maturity status link STEL12H24 STEL12H24 Datasheet Electronic switch for 12 V, 5 V and 3.3 V buses .
The STEL12H24 is an integrated controlled inrush and overcurrent protection device optimized for power bus architectures.

STEL12H24 Features

* Power Input voltage from 0.5 V to 13.5 V
* Analog input voltage from 3.0 V to 13.5 V
* 17 A max DC output current
* Embedded 4.5 mΩ N-channel MOSFET
* Internal output discharge path
* Power Good
* Soft-start controlled with external capacitor

📥 Download Datasheet

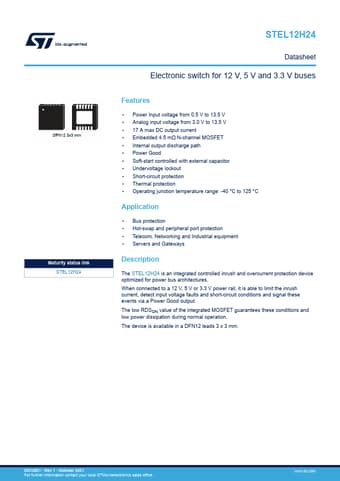

Preview of STEL12H24 PDF
datasheet Preview Page 2 datasheet Preview Page 3
