STEF512SRI Dual electronic fuse

STEF512SRI Description

STEF512SRI Datasheet Dual electronic fuse for 5 V and 12 V rails with reverse current blocking Maturity status link STEF512SRI .
The STEF512SRI is an integrated dual electronic fuse, designed to protect circuitry on the output from overcurrent and overvoltage events, in those ap.

STEF512SRI Features

* 5 V and 12 V channels in one chip
* 23.5 V absolute maximum input voltage
* Precise output overvoltage clamp
* Fixed overcurrent protection for both channels
* Reverse current protection on 5 V channel
* Current monitor output in a single pin for bot

STEF512SRI Applications

* HD and SSD
* Hard disk arrays and NAS

📥 Download Datasheet

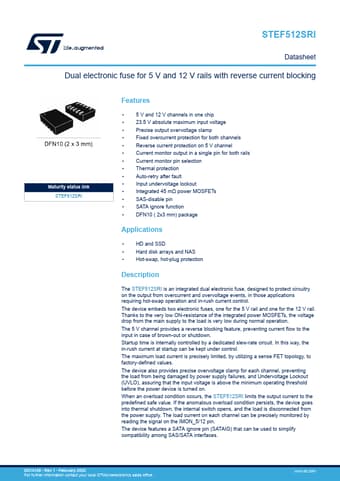

Preview of STEF512SRI PDF
datasheet Preview Page 2 datasheet Preview Page 3
