STDP9320, STDP9310 - Premium high resolution multimedia monitor controller

STDP9320 Description

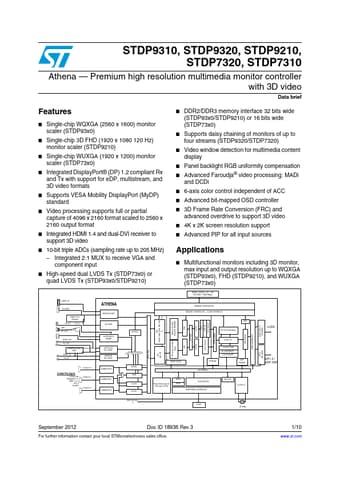

STDP9310, STDP9320, STDP9210, STDP7320, STDP7310 Athena * Premium high resolution multimedia monitor controller with 3D video Data brief Feat.
1 Description STDP9310, STDP9320, STDP9210, STDP7310, STDP7320 The STDP93x0, STDP9210, and STDP73x0 (i.

STDP9320 Features

* Single-chip WQXGA (2560 x 1600) monitor scaler (STDP93x0)
* Single-chip 3D FHD (1920 x 1080 120 Hz) monitor scaler (STDP9210)
* Single-chip WUXGA (1920 x 1200) monitor scaler (STDP73x0)
* Integrated DisplayPort® (DP) 1.2 compliant Rx and Tx with support for eDP, multistream, and 3D

STDP9320 Applications

* Multifunctional monitors including 3D monitor, max input and output resolution up to WQXGA (STDP93x0), FHD (STDP9210), and WUXGA (STDP73x0) VGA COMP_HD VGA RGB RGB-YUV Source LINE_IN_R LINE_IN_L SPK HP_OUT AMP SPDIF_OUT I2S_OUT External Audio DSP SPDIF_IN I2S_IN Combo Phy Inputs 5.4Gb

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STDP9320, STDP9310. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STDP9320, STDP9310
Manufacturer
STMicroelectronics ↗
File Size
199.30 KB
Datasheet
STDP9310-STMicroelectronics.pdf
Description
Premium high resolution multimedia monitor controller
Note
This datasheet PDF includes multiple part numbers: STDP9320, STDP9310.
Please refer to the document for exact specifications by model.
