STD9NM60-1, STD9NM60 N-channel Power MOSFET

STD9NM60-1 Description

STP9NM60 STD9NM60 - STD9NM60-1 N-CHANNEL 600V - 0.55Ω - 8.3A TO-220/DPAK/IPAK Zener-Protected MDmesh™Power MOSFET TARGET DATA TYPE VDSS RDS(on) ID .
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

STD9NM60-1 Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STD9NM60-1 Applications

* The MDmesh™ family is very suitable for increase the power density of high voltage converters allowing system miniaturization and higher efficiencies. ORDERING INFORMATION SALES TYPE STP9NM60 STD9NM60T4 STD9NM60-1 MARKING P9NM60 D9NM60 D9NM60 June 2003 PACKAGE TO-220 DPAK IPAK PACKAGING TUBE TA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STD9NM60-1, STD9NM60. Please refer to the document for exact specifications by model.

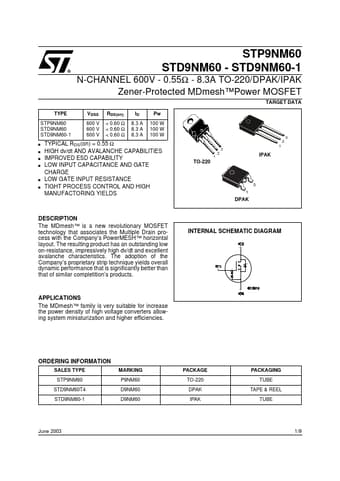

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STD9NM60-1, STD9NM60
Manufacturer
STMicroelectronics ↗
File Size
335.54 KB
Datasheet
STD9NM60-STMicroelectronics.pdf
Description
N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STD9NM60-1, STD9NM60.
Please refer to the document for exact specifications by model.
