STD9N80K5 N-channel Power MOSFET

STD9N80K5 Description

STD9N80K5 Datasheet N-channel 800 V, 730 mΩ typ., 7 A MDmesh K5 Power MOSFET in a DPAK package TAB 23 1 DPAK D (2 , TAB) G( 1) S(3) AM15572V1 Feat.
This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure.

STD9N80K5 Features

* Order code VDS RDS(on)max. ID STD9N80K5 800 V 900 mΩ 7A
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra-low gate charge
* 100% avalanche tested

📥 Download Datasheet

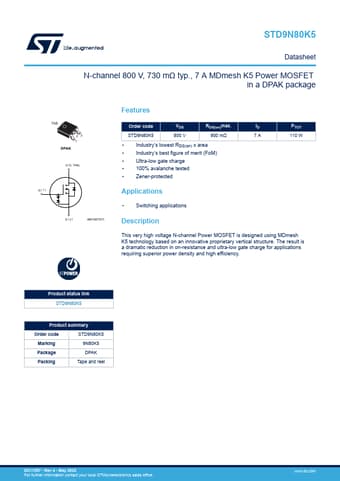

Preview of STD9N80K5 PDF
