STD10NM65N - N-Channel MOSFET

Datasheet Summary

Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

Features

  • Order code VDS @ Tjmax. RDS(on) max. ID STD10NM65N 710 V 0.48 Ω 9A.
  • 100% avalanche tested.
  • Low input capacitance and gate charge.
  • Low gate input resistance.

📥 Download Datasheet

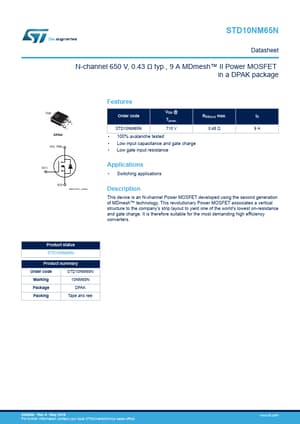

Datasheet preview – STD10NM65N

Datasheet Details

Part number STD10NM65N
Manufacturer STMicroelectronics
File Size 370.27 KB
Description N-Channel MOSFET
Datasheet download datasheet STD10NM65N Datasheet
Additional preview pages of the STD10NM65N datasheet.

📁 Similar Datasheet

  • STD10NM65N - N-Channel MOSFET (INCHANGE)
  • STD10NM60N - N-Channel Power MOSFET (ST Microelectronics)
  • STD10NM60N - N-Channel MOSFET (INCHANGE)
  • STD10N10 - N-Channel MOSFET (SamHop Microelectronics)
  • STD10N20 - N-Channel MOSFET (SamHop Microelectronics)
  • STD10N25 - N-Channel MOSFET (SamHop Microelectronics)
  • STD10NF06L - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STD10NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STD10NF10-1 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STD10NF10T4 - N-Channel MOSFET (VBsemi)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STD10NM65N Datasheet N-channel 650 V, 0.43 Ω typ., 9 A MDmesh™ II Power MOSFET in a DPAK package TAB 23 1 DPAK D(2, TAB) G(1) S(3) AM01475v1_noZen Features Order code VDS @ Tjmax. RDS(on) max. ID STD10NM65N 710 V 0.48 Ω 9A • 100% avalanche tested • Low input capacitance and gate charge • Low gate input resistance Applications • Switching applications Description This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
