STD100N10LF7AG - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

STD100N10LF7AG Datasheet Preview — Preview of STD100N10LF7AG PDF

Datasheet Details

Part number	STD100N10LF7AG
Manufacturer	STMicroelectronics
File Size	646.26 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STD100N10LF7AG-STMicroelectronics.pdf

STD100N10LF7AG Product details

Description

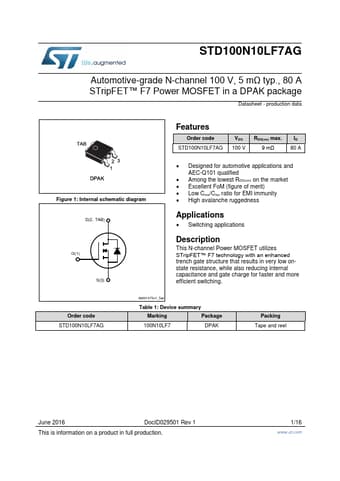

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

Order code STD100N10LF7AG VDS 100 V RDS(on) max. 9 mΩ ID 80 A Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3).
Designed for automotive.
