STB70N10F4 - N-CHANNEL MOSFET

STMicroelectronics

The STB70N10F4 by STMicroelectronics is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

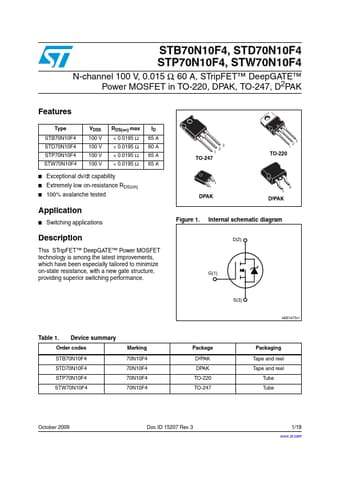

STB70N10F4 N-CHANNEL MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STB70N10F4** N-CHANNEL MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STB70N10F4
Manufacturer	STMicroelectronics
File Size	582.79 KB
Description	N-CHANNEL MOSFET
Datasheet	STB70N10F4-STMicroelectronics.pdf
Additional preview pages of the STB70N10F4 datasheet.

STB70N10F4 Product details

Description

This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance, with a new gate structure, providing superior switching performance.

Features

Type STB70N10F4 STD70N10F4 STP70N10F4 STW70N10F4 VDSS 100 V 100 V 100 V 100 V RDS(on) max < 0.0195 Ω < 0.0195 Ω < 0.0195 Ω < 0.0195 Ω ID 65 A 60 A 65 A 65 A.
Exceptional dv/dt capability.
Extremely low on-resistance RDS(on).
100% avalanche tested.
