ST2S06A33 (ST2S06xxx) Dual synchronous rectification

ST2S06A33 Description

ST2S06A33 ST2S06B - ST2S06D33 Dual synchronous rectification with reset or inhibit, 0.5 A, 1.5 MHz adjustable step-down switching regulator .
The ST2S06 is a dual step-down DC-DC converter optimized for powering low-voltage digital cores in ODD applications and, generally, to replace the hig.

ST2S06A33 Features

* Step-down current mode PWM (1.5 MHz) DC-DC converter from 0.8 V
* Fixed or adjustable output voltage www. DataSheet4U. com
* 2% DC output voltage tolerance
* Synchronous rectification Reset function for A and D versions Inhibit

ST2S06A33 Applications

* and, generally, to replace the high current linear solution when Table 1. Device summary Order code ST2S06APQR(1) ST2S06A33PQR ST2S06D33PQR ST2S06BPQR Package QFN12L (4x4 mm) QFN12L (4x4 mm) QFN12L (4x4 mm) QFN12L (4x4 mm) Packaging Tape and reel Tape and reel Tape and reel Tape and reel 1. Avail

📥 Download Datasheet

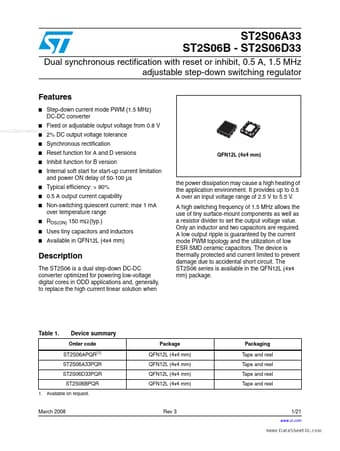

Preview of ST2S06A33 PDF
datasheet Preview Page 2 datasheet Preview Page 3
