The ST23YS02 by STMicroelectronics is a Smartcard MCU. Below is the official datasheet preview.
| Part number | ST23YS02 |
|---|---|
| Manufacturer | STMicroelectronics |
| File Size | 90.10 KB |
| Description | Smartcard MCU |
| Datasheet |

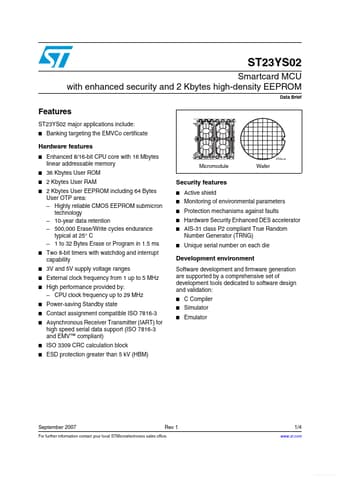

 ST23YS02_STMicroelectronics.pdf
|
|
|
ST23YS02 1 Description The ST23YS02 product is a serial access microcontroller specially designed for secure smartcard applications.It is based on an enhanced STMicroelectronics 8/16-bit CPU core offering 16 Mbytes linear addressing space.It is manufactured using an advanced highly reliable ST CMOS EEPROM technology.Figure 1. ST23YS02 block diagram RAM EEPROM User ROM ST ROM (Boot software) EDES Accelerator ST ROM Firewall Internal Bus CRC Module Clock Generator Module CLK 2x 8-b
