ST2149B 4-bit dual supply level translator

STMicroelectronics

ST2149B Description

ST2149B 4-bit dual supply level translator without direction control pin .

ST2149B Features

* 45 MHz: 90 Mbps (max. ) data rate at VL = 1.8 V, VCC = 3.3 V
* Bi-directional level translation without direction control pin
* Wide voltage range (VL ≤ VCC):
* VL ranges from 1.65 to 3.6 V
* VCC ranges from 1.65 to 5.5 V
* Totem-pole driving
* 5.5 V tolerant ena

ST2149B Applications

* Low-voltage system level translation
* Mobile phones and other mobile devices Datasheet
* production data QFN12 (1.7 x 2.0 mm) Table 1. Device summary Order code Package Packing Package topmark ST2149BQTR QFN12 (1.7 x 2.0 mm) Tape and reel (3000 parts per reel) 49A June

📥 Download Datasheet

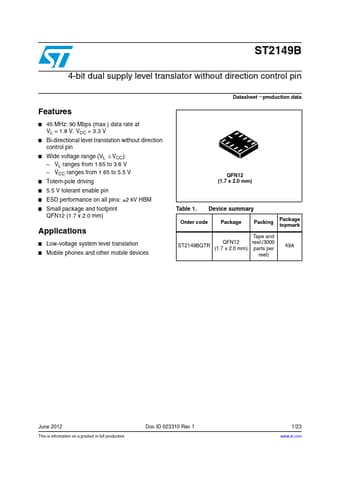

ST2149B Datasheet Preview — Preview of ST2149B PDF
