ST13007DFP - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

Datasheet Summary

Description

The device is manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and high voltage capability.

It uses a Cellular Emitter structure to enhance switching speeds.

📥 Download Datasheet

Datasheet preview – ST13007DFP

Datasheet Details

Part number ST13007DFP
Manufacturer STMicroelectronics
File Size 219.72 KB
Description HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
Datasheet download datasheet ST13007DFP Datasheet
Additional preview pages of the ST13007DFP datasheet.

📁 Similar Datasheet

  • ST13007D - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR (ST Microelectronics)
  • ST13007 - High voltage fast-switching NPN power transistor (ST Microelectronics)
  • ST13007A - High voltage fast-switching NPN power transistor (ST Microelectronics)
  • ST13007B - High voltage fast-switching NPN power transistor (ST Microelectronics)
  • ST13007N - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTORS (ST Microelectronics)
  • ST13007NFP - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTORS (ST Microelectronics)
  • ST13001 - NPN Silicon Epitaxial Planar Transistor (SEMTECH)
  • ST13003 - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR (ST Microelectronics)
  • ST13003 - NPN Silicon Epitaxial Planar Transistor (SEMTECH)
  • ST13003-K - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

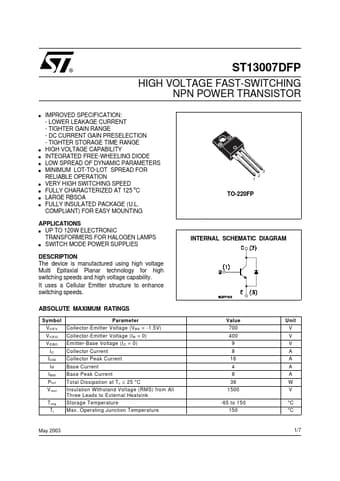

® ST13007DFP HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR s IMPROVED SPECIFICATION: - LOWER LEAKAGE CURRENT - TIGHTER GAIN RANGE - DC CURRENT GAIN PRESELECTION - TIGHTER STORAGE TIME RANGE s HIGH VOLTAGE CAPABILITY s INTEGRATED FREE-WHEELING DIODE s LOW SPREAD OF DYNAMIC PARAMETERS s MINIMUM LOT-TO-LOT SPREAD FOR RELIABLE OPERATION s VERY HIGH SWITCHING SPEED s FULLY CHARACTERIZED AT 125 oC s LARGE RBSOA s FULLY INSULATED PACKAGE (U.L. COMPLIANT) FOR EASY MOUNTING APPLICATIONS s UP TO 120W ELECTRONIC TRANSFORMERS FOR HALOGEN LAMPS s SWITCH MODE POWER SUPPLIES DESCRIPTION The device is manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and high voltage capability. It uses a Cellular Emitter structure to enhance switching speeds.
