SMTPA200, SMTPA62, Trisil

SMP50 / SMTPA / TPA Trisil™ for telecom equipment protection .
These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines.

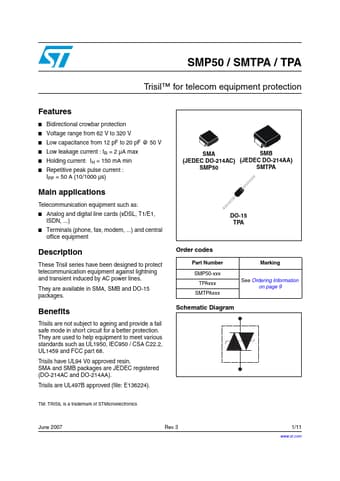

datasheet Preview Page 1 from Datasheet4u.com

SMTPA62-STMicroelectronics.pdf

SMTPA200 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMTPA200, SMTPA62. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMTPA200, SMTPA62

Manufacturer:

STMicroelectronics ↗

File Size:

125.26 KB

Description:

Trisil

Note:

This datasheet PDF includes multiple part numbers: SMTPA200, SMTPA62.
Please refer to the document for exact specifications by model.

Features

* Bidirectional crowbar protection
* Voltage range from 62 V to 320 V
* Low capacitance from 12 pF to 20 pF @ 50 V
* Low leakage current : IR = 2 µA max
* Holding current: IH = 150 mA min

Applications

* Telecommunication equipment such as:
* Analog and digital line cards (xDSL, T1/E1, ISDN, )
