SMBJ16A

The SMBJ16A is 600W TVS designed by STMicroelectronics.

Product Overview

STMicroelectronics

Datasheet Details

Part number	SMBJ16A, SMBJ
Manufacturer	STMicroelectronics
File Size	572.75 KB
Description	600W TVS
Datasheet	SMBJ-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SMBJ16A, SMBJ. Please refer to the document for exact specifications by model.

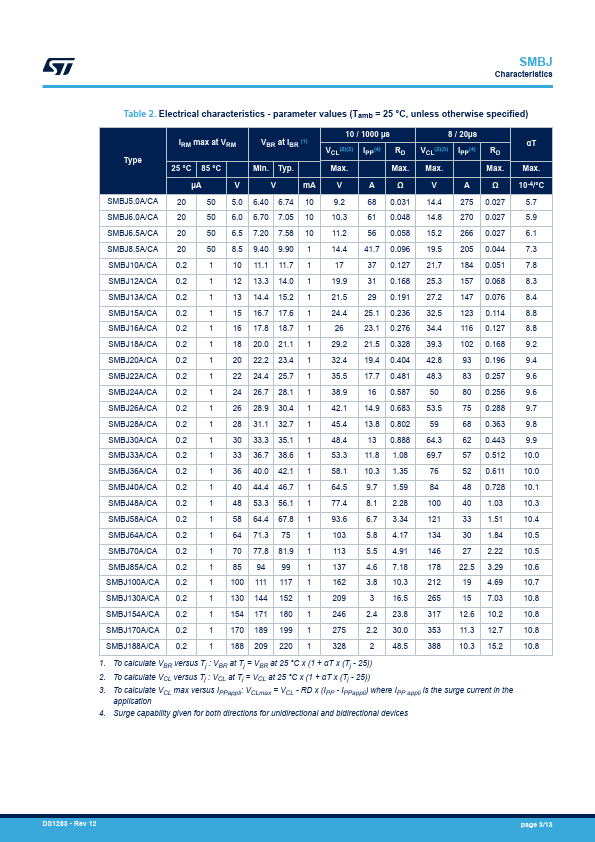

Additional preview pages of the SMBJ16A datasheet.

Product details

Description

The SMBJ series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

Features

Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs).
Stand-off voltage range from 5 V to 188 V.
Unidirectional and bidirectional types.
Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
Operating Tj max: 150 °C.
High power capability at Tj max. : up to 515 W (10/1000 µs).
Lead finishing: matte tin plating Complies with the following standards.
UL94, V0.
J-STD-020 MSL level 1.
J-STD-002, JESD 22-B1.
