SMAJ43CA-TR - TRANSIL

Download the SMAJ43CA-TR datasheet PDF (SMAJ5.0A-TR included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for transil.

Description

The SMAJ series are TRANSILTM diodes designed specifically for protecting sensitive equipment against transient overvoltages.

The SMA package allows save spacing on high density printed circuit boards.

Transil diodes provide high overvoltage protection by clamping action.

Features

  • PEAK PULSE POWER : 400 W (10/1000µs) STAND OFF.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMAJ5.0A-TR-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • SMAJ43CA-13-F - Transient Voltage Suppressor (Multicomp)
  • SMAJ43CA-C - 400W Peak Power Surface Mount TVS (SeCoS)
  • SMAJ43CA - Surface Mount Transient Voltage Suppressors (CYStech Electronics)
  • SMAJ43CA - Transient Voltage Suppression Diodes (Littelfuse)
  • SMAJ43CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SMAJ43CA - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)
  • SMAJ43CA - 400W Surface Mount Transient Voltage Suppressors (Weitron)
  • SMAJ43CA - 400W Surface Mount Transient Voltage Suppressor (TAITRON)
  • SMAJ43CA - Transient Voltage Suppressor (MCC)
  • SMAJ43CA - Transient Voltage Suppressor Diode (Bourns)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

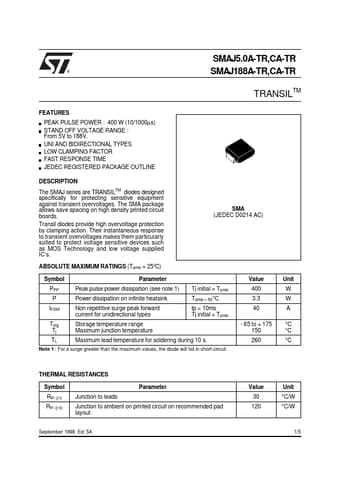

SMAJ5.0A-TR,CA-TR ® SMAJ188A-TR,CA-TR TRANSILTM FEATURES PEAK PULSE POWER : 400 W (10/1000µs) STAND OFF VOLTAGE RANGE : From 5V to 188V. UNI AND BIDIRECTIONAL TYPES LOW CLAMPING FACTOR FAST RESPONSE TIME JEDEC REGISTERED PACKAGE OUTLINE DESCRIPTION The SMAJ series are TRANSILTM diodes designed specifically for protecting sensitive equipment against transient overvoltages. The SMA package allows save spacing on high density printed circuit boards. Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
