SM15T6V8AY - Automotive 1500W TVS

STMicroelectronics

The SM15T6V8AY by STMicroelectronics is a Automotive 1500W TVS. Below is the official datasheet preview.

📥 Download Datasheet

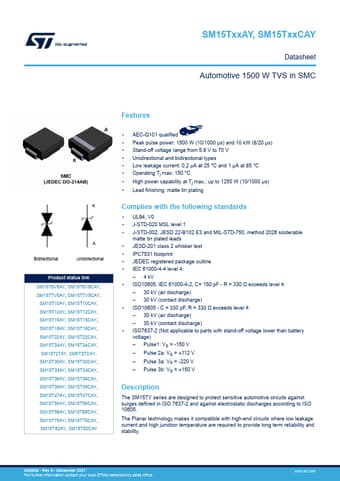

SM15T6V8AY Automotive 1500W TVS by STMicroelectronics - Datasheet Preview — Official preview page of the **SM15T6V8AY** Automotive 1500W TVS datasheet (STMicroelectronics).

Datasheet Details

Part number	SM15T6V8AY
Manufacturer	STMicroelectronics
File Size	855.36 KB
Description	Automotive 1500W TVS
Datasheet	SM15T6V8AY-STMicroelectronics.pdf
Additional preview pages of the SM15T6V8AY datasheet.

SM15T6V8AY Product details

Description

The SM15TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605.

Features

AEC-Q101 qualified.
Peak pulse power: 1500 W (10/1000 μs) and 10 kW (8/20 μs).
Stand-off voltage range from 5.8 V to 70 V.
Unidirectional and bidirectional types.
Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
Operating Tj max: 150 °C.
High power capability at Tj max. : up to 1250 W (10/1000 µs).
Lead finishing: matte tin plating Complies with the following standards.
UL94, V0.
J-STD-020 MSL level.
