SA555N, SA555 General-purpose single bipolar timer

SA555N Description

NE555 SA555 - SE555 General-purpose single bipolar timers .
The NE555, SA555, and SE555 monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation.

SA555N Features

* Low turn-off time
* Maximum operating frequency greater than 500 kHz
* Timing from microseconds to hours
* Operates in both astable and monostable modes
* Output can source or sink up to 200 mA
* Adjustable duty cycle
* TTL compatible
* Temperature stability of 0.00

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA555N, SA555. Please refer to the document for exact specifications by model.

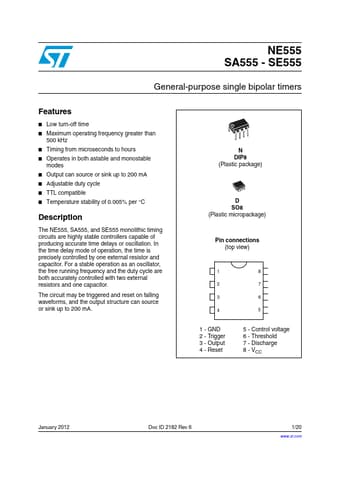

datasheet Preview Page 2 datasheet Preview Page 3
