QAMI5107 - Low-cost QAM demodulator and MPEG2 decoder SOC

STMicroelectronics

📥 Download Datasheet

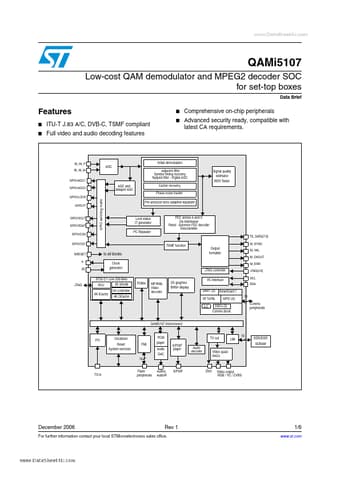

QAMI5107 Datasheet Preview — Preview of QAMI5107 PDF

Datasheet Details

Part number: QAMI5107
Manufacturer: STMicroelectronics ↗
File Size: 114.68 KB
Datasheet: QAMI5107_STMicroelectronics.pdf
Description: Low-cost QAM demodulator and MPEG2 decoder SOC

QAMI5107 Product details

Description

www.DataSheet4U.com QAMi5107 1 Description The QAMi5107 provides an integrated demodulator/decoder solution for digital cable receivers for compressed video, sound and data services.A QAM (quadrature amplitude modulation) demodulator and FEC performs IF to MPEG-2 block processing of QAM carriers.The demodulated stream is then processed by video and audio decoders.The device implements a fully unified SDR.

Features

Comprehensive on-chip peripherals Advanced security ready, compatible with latest CA requirements. ITU-T J.83 A/C, DVB-C, TSMF compliant Full video and audio decoding features IB_IN_P Initial demodulator ADC Adjacent filter Symbol timing recovery Nyquist filter - Digital AGC AGC and delayed AGC GPIO switching matrix IB_IN_M GPIO/AGC1 GPIO/AGC2 GPIO/LOCK GPIO/IT Signal quality estimator BER Tester Carrier recovery Phase noise tracker Pre and post echo adaptive equa.
