PD57030-E - RF POWER transistor

Description

The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor.

It is designed for high gain, broad band commercial and industrial applications.

It operates at 28 V in common source mode at frequencies up to 1 GHz.

Features

Excellent thermal stability.
Common source configuration.
POUT = 30 W with 14dB gain @ 945 MHz / 28 V.
New RF plastic package.

Datasheet Details

Part number	PD57030-E
Manufacturer	STMicroelectronics
File Size	474.18 KB
Description	RF POWER transistor
Datasheet	PD57030-E Datasheet
Additional preview pages of the PD57030-E datasheet.

📁 Similar Datasheet

PD570BA - N-Channel MOSFET (UNIKC)

PD5710 - User Manual (Escon)

PD5710 - Installation and service manual (Escon)

PD5715 - User Manual (Escon)

PD5715 - Installation and service manual (Escon)

PD5720 - User Manual (Escon)

PD5720 - Installation and service manual (Escon)

PD5730 - User Manual (Escon)

PD5730 - Installation and service manual (Escon)

PD5036 - Telephone Ring Generator Controller (PowerDsine)

Full PDF Text Transcription

Click to expand full text

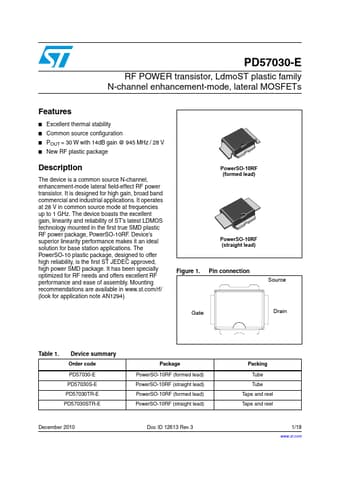

PD57030-E RF POWER transistor, LdmoST plastic family N-channel enhancement-mode, lateral MOSFETs Features ■ Excellent thermal stability ■ Common source configuration ■ POUT = 30 W with 14dB gain @ 945 MHz / 28 V ■ New RF plastic package Description The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor. It is designed for high gain, broad band commercial and industrial applications. It operates at 28 V in common source mode at frequencies up to 1 GHz. The device boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. Device’s superior linearity performance makes it an ideal solution for base station applications.
