Part number:
M29W116BB, M29W116BT
Manufacturer:
File Size:
157.11 KB
Description:
16 mbit low voltage single supply flash memory.
Note:
This datasheet PDF includes multiple part numbers: M29W116BB, M29W116BT.
Please refer to the document for exact specifications by model.
M29W116BB, M29W116BT, 16 Mbit Low Voltage Single Supply Flash Memory
The M29W116B is a 16Mbit (2Mb x8) non-volatile memory that can be read, erased and reprogrammed.
These operations can be performed using a single low voltage (2.7 to 3.6V) supply.
On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.
The memory is d

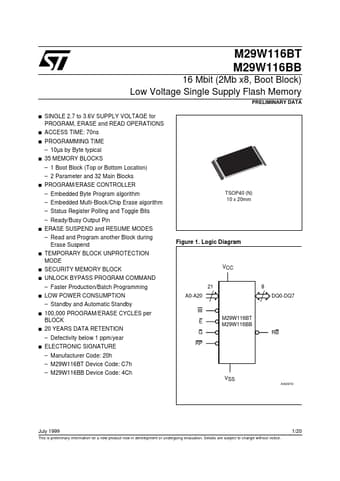

M29W116BT M29W116BB 16 Mbit (2Mb x8, Boot Block) Low Voltage Single Supply Flash Memory PRELIMINARY DATA s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS s ACCESS TIME: 70ns s PROGRAMMING TIME 10µs by Byte typical s 35 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 32 Main Blocks s PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Reg
