M27W202 - 2 Mbit 128Kb x16 Low Voltage UV EPROM and OTP EPROM

STMicroelectronics

The M27W202 by STMicroelectronics is a 2 Mbit 128Kb x16 Low Voltage UV EPROM and OTP EPROM. Below is the official datasheet preview.

📥 Download Datasheet

M27W202 2 Mbit 128Kb x16 Low Voltage UV EPROM and OTP EPROM by STMicroelectronics - Datasheet Preview — Official preview page of the **M27W202** 2 Mbit 128Kb x16 Low Voltage UV EPROM and OTP EPROM datasheet (STMicroelectronics).

Datasheet Details

Part number	M27W202
Manufacturer	STMicroelectronics
File Size	103.21 KB
Description	2 Mbit 128Kb x16 Low Voltage UV EPROM and OTP EPROM
Datasheet	M27W202_STMicroelectronics.pdf

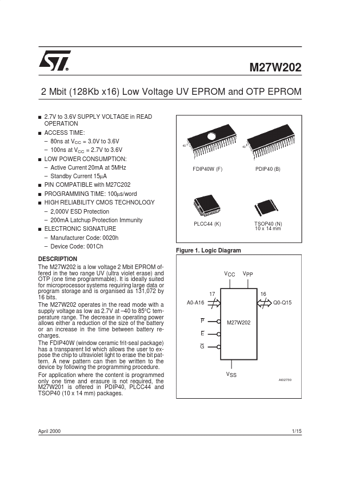

Additional preview pages of the M27W202 datasheet.

M27W202 Product details

Description

The M27W202 is a low voltage 2 Mbit EPROM offered in the two range UV (ultra violet erase) and OTP (one time programmable). 40 to 85°C temperature range.

Features

a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should be decoded and used as the primary device selecting function, while G should be made a common connection to all devices in the array and connected to the READ line from the system control bus. This en.
