M27V201 - 2 Mbit 256Kb x 8 Low Voltage UV EPROM and OTP EPROM

STMicroelectronics

The M27V201 by STMicroelectronics is a 2 Mbit 256Kb x 8 Low Voltage UV EPROM and OTP EPROM. Below is the official datasheet preview.

Datasheet Details

Part number	M27V201
Manufacturer	STMicroelectronics
File Size	103.74 KB
Description	2 Mbit 256Kb x 8 Low Voltage UV EPROM and OTP EPROM
Datasheet	M27V201_STMicroelectronics.pdf

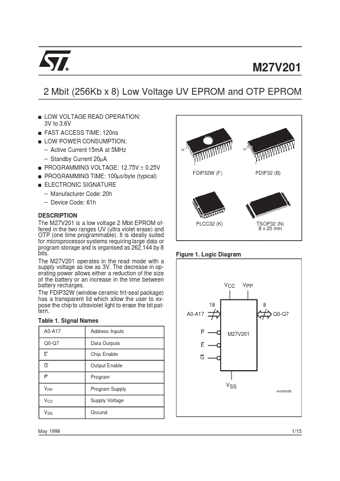

Additional preview pages of the M27V201 datasheet.

The M27V201 is a low voltage 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should be decoded and used as the primary device selecting function, while G should be made a common connection to all devices in the array and connected to the READ line from the system control bus. This ens.
