M24SR02-Y - Dynamic NFC/RFID tag IC

Description

The M24SR02-Y device is a dynamic NFC/RFID tag IC with a dual interface.

It embeds an EEPROM memory.

It can be operated from an I2C interface or by a 13.56 MHz RFID reader or an NFC phone.

Features

  • I2C interface.
  • Two-wire I2C serial interface supports 1 MHz protocol.
  • Single supply voltage: 2.7 V to 5.5 V Contactless interface.
  • NFC Forum Type 4 Tag.
  • ISO/IEC 14443 Type A.
  • 106 Kbps data rate.
  • Internal tuning capacitance: 25 pF Digital pad.
  • GPO: configurable General Purpose Output.
  • RF disable: activation/deactivation of RF commands.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

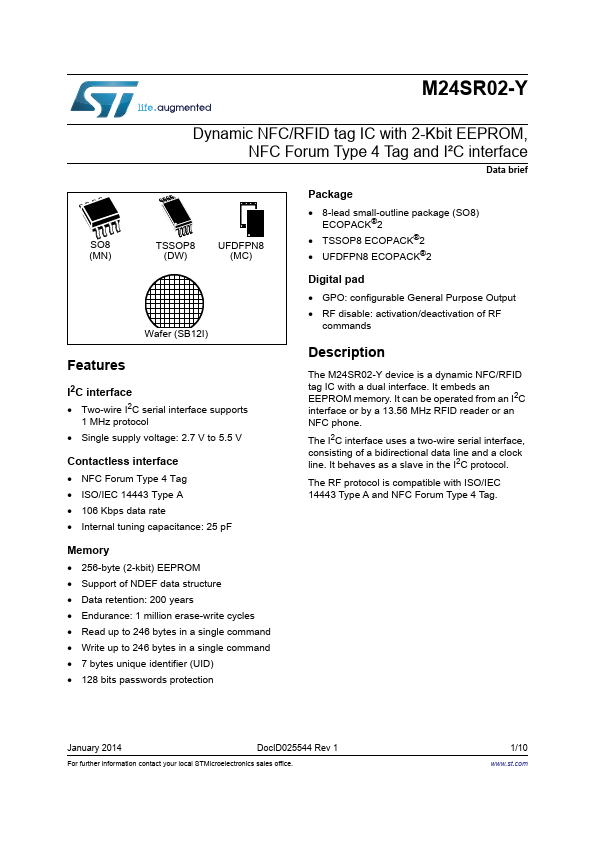

M24SR02-Y Dynamic NFC/RFID tag IC with 2-Kbit EEPROM, NFC Forum Type 4 Tag and I²C interface Data brief SO8 (MN) TSSOP8 (DW) UFDFPN8 (MC) Package • 8-lead small-outline package (SO8) ECOPACK®2 • TSSOP8 ECOPACK®2 • UFDFPN8 ECOPACK®2 Wafer (SB12I) Features I2C interface • Two-wire I2C serial interface supports 1 MHz protocol • Single supply voltage: 2.7 V to 5.5 V Contactless interface • NFC Forum Type 4 Tag • ISO/IEC 14443 Type A • 106 Kbps data rate • Internal tuning capacitance: 25 pF Digital pad • GPO: configurable General Purpose Output • RF disable: activation/deactivation of RF commands Description The M24SR02-Y device is a dynamic NFC/RFID tag IC with a dual interface. It embeds an EEPROM memory. It can be operated from an I2C interface or by a 13.
