M24M02E-U - 2-Mbit serial I2C bus EEPROM

Product Overview

STMicroelectronics

Datasheet Details

Part number	M24M02E-U
Manufacturer	STMicroelectronics
File Size	576.83 KB
Description	2-Mbit serial I2C bus EEPROM
Datasheet	M24M02E-U Datasheet
Additional preview pages of the M24M02E-U datasheet.

Product details

Description

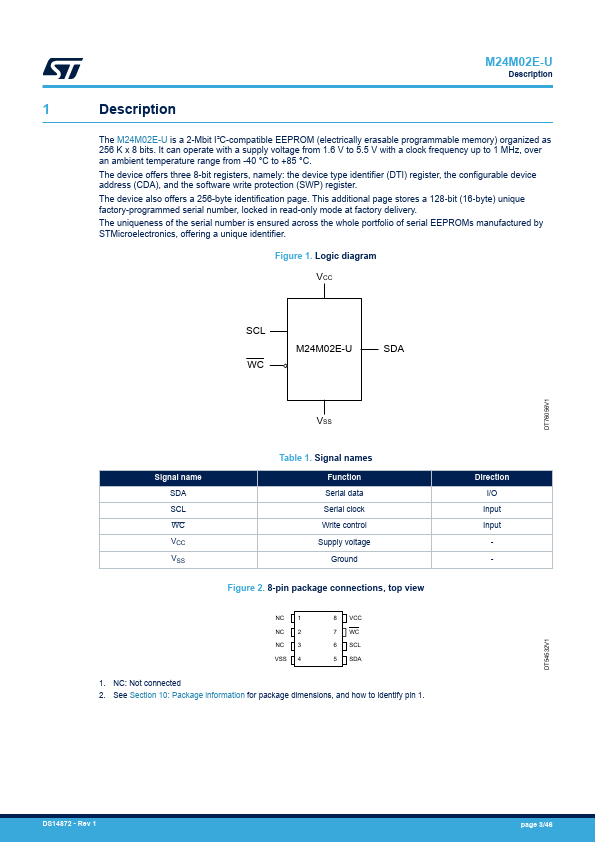

1 Description The M24M02E-U is a 2-Mbit I²C-compatible EEPROM (electrically erasable programmable memory) organized as 256 K x 8 bits.It can operate with a supply voltage from 1.6 V to 5.5 V with a clock frequency up to 1 MHz, over an ambient temperature range from -40 °C to +85 °C.The device offers three 8-bit registers, namely: the device type identifier (DTI) register, the configurable device address (CDA), and the software write protection (SWP) register.The device also offers a 256-by

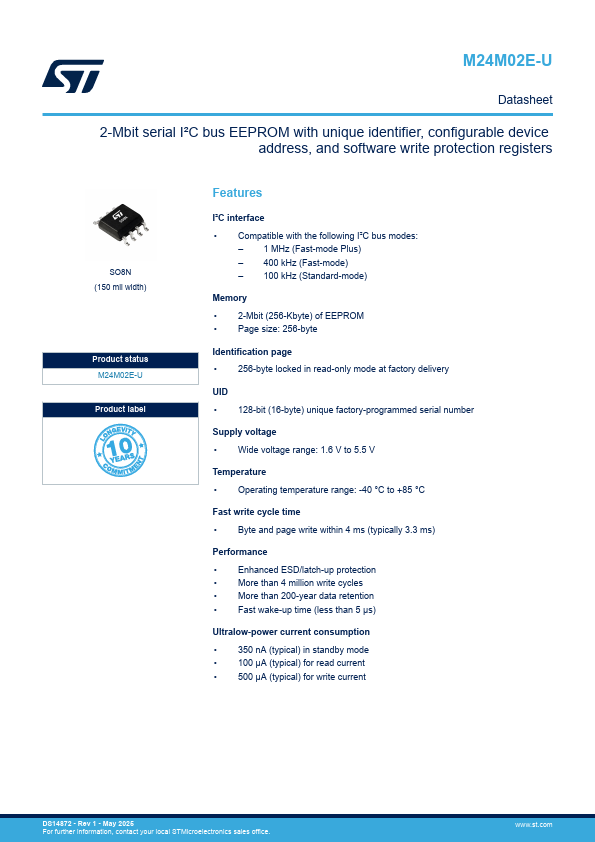

Features

I²C interface.
Compatible with the following I²C bus modes:.
1 MHz (Fast-mode Plus).
400 kHz (Fast-mode).
100 kHz (Standard-mode) Memory.
2-Mbit (256-Kbyte) of EEPROM.
Page size: 256-byte Identification page.
256-byte locked in read-only mode at factory delivery UID.
128-bit (16-byte) unique factory-programmed serial number Supply voltage.
Wide voltage range: 1.6 V to 5.5 V Temperature.
Operating temperatur.
