LM324W - Low Power Quad Operational Amplifier

Description

The LM124, LM224x and LM324x consist of four independent, high gain operational amplifiers with frequency compensation implemented internally.

They operate from a single power supply over a wide range of voltages.

Features

  • Wide gain bandwidth: 1.3 MHz.
  • Input common mode voltage range includes ground.
  • Large voltage gain: 100 dB.
  • Very low supply current/amplifier: 375 µA.
  • Low input bias current: 20 nA.
  • Low input voltage: 3 mV max.
  • Low input offset current: 2 nA.
  • Wide power supply range:.
  • Single supply: 3 V to 30 V.
  • Dual supplies: ±1.5 V to ±15 V Related products.
  • See TSB572 and TSB611, 36 V newer technology devices,.

📥 Download Datasheet

📁 Similar Datasheet

  • LM324 - Quad Low Power Operational Amplifier (Motorola Inc)
  • LM324 - Low Power Quad Operational Amplifiers (National Semiconductor)
  • LM324 - Quad Operational Amplifier (Fairchild Semiconductor)
  • LM324 - QUAD OPERATIONAL AMPLIFIERS (UTC)
  • LM324 - Single Supply Quad Operational Amplifier (ON Semiconductor)
  • LM324 - Quadruple Operational Amplifier (Texas Instruments)
  • LM324 - Quad Operational Amplifiers (HTC)
  • LM324 - Low-Power 36V Op Amps (3Peak)
  • LM324-MIL - Quadruple Operational Amplifier (Texas Instruments)
  • LM324-N - Quad-Operational Amplifiers (Texas Instruments)
Other Datasheets by STMicroelectronics
  • LM324 - Low-power quad operational amplifiers
  • LM324A - Low-power quad operational amplifiers
  • LM323 - THREE-TERMINAL 3A-5V POSITIVE VOLTAGE REGULATORS
  • LM301 - SINGLE OPERATIONAL AMPLIFIER
  • LM301A - SINGLE OPERATIONAL AMPLIFIER
  • LM311 - Voltage comparator
  • LM311D - Voltage comparator
  • LM311N - Voltage comparator

Full PDF Text Transcription

Click to expand full text

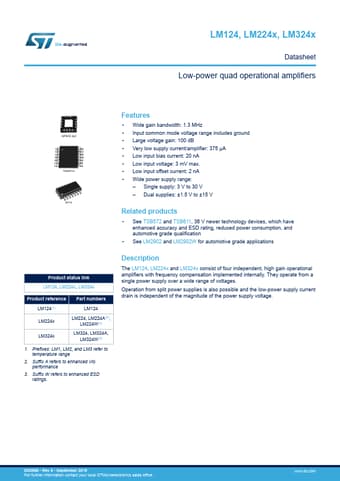

LM124, LM224x, LM324x Datasheet Low-power quad operational amplifiers QFN16 3x3 TSSOP14 SO14 Features • Wide gain bandwidth: 1.3 MHz • Input common mode voltage range includes ground • Large voltage gain: 100 dB • Very low supply current/amplifier: 375 µA • Low input bias current: 20 nA • Low input voltage: 3 mV max. • Low input offset current: 2 nA • Wide power supply range: – Single supply: 3 V to 30 V – Dual supplies: ±1.
