LM2901 - Low-power quad voltage comparator

Name: LM2901
SKU: LM2901-1495625

STMicroelectronics

📥 Download Datasheet

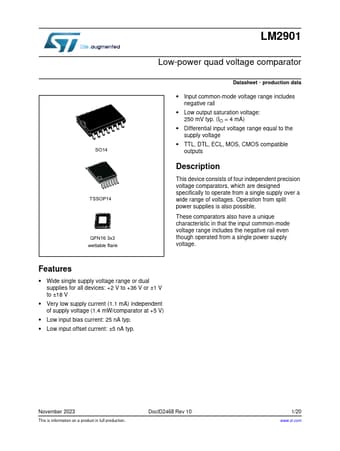

LM2901 Datasheet Preview — Preview of LM2901 PDF

Datasheet Details

Part number	LM2901
Manufacturer	STMicroelectronics
File Size	743.61 KB
Description	Low-power quad voltage comparator
Datasheet	LM2901-STMicroelectronics.pdf

LM2901 Product details

Description

This device consists of four independent precision voltage comparators, which are designed specifically to operate from a single supply over a wide range of voltages.

Features

Wide single supply voltage range or dual supplies for all devices: +2 V to +36 V or ±1 V to ±18 V.
Very low supply current (1.1 mA) independent of supply voltage (1.4 mW/comparator at +5 V).
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ. November 2023 This is information on a product in full production. DocID2468 Rev 10 1/20 www. st. com Contents Contents LM2901 1 Pin connection and schematic diagram.
