LE50ABD-TR - Very low-dropout voltage regulator

STMicroelectronics

Datasheet Details

Part number	LE50ABD-TR
Manufacturer	STMicroelectronics
File Size	958.35 KB
Description	Very low-dropout voltage regulator
Datasheet	LE50ABD-TR-STMicroelectronics.pdf

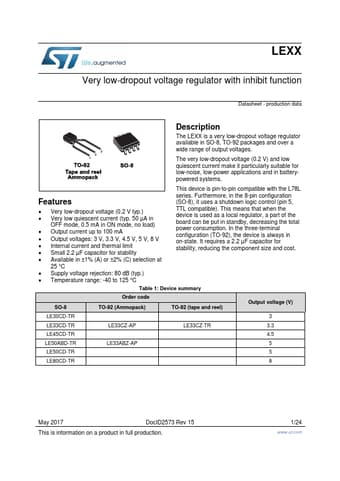

The LEXX is a very low-dropout voltage regulator available in SO-8, TO-92 packages and over a wide range of output voltages.

Very low-dropout voltage (0.2 V typ. ).
Very low quiescent current (typ. 50 µA in OFF mode, 0.5 mA in ON mode, no load).
Output current up to 100 mA.
Output voltages: 3 V, 3.3 V, 4.5 V, 5 V, 8 V.
Internal current and thermal limit.
Small 2.2 µF capacitor for stability.
Available in ±1% (A) or ±2% (C) selection at 25 °C.
Supply voltage rejection: 80 dB (typ. ).
Temperature range: -40 to 125 °C This device is pin-to-pin compatible with the L78L series.
