L6561D - POWER FACTOR CORRECTOR

Download the L6561D datasheet PDF (L6561 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for power factor corrector.

Description

L6561 is the improved version of the L6560 standard Power Factor Corrector.

Fully compatible with the standard version, it has a superior performant multiplier making the device capable of working in wide input voltage range applications (from 85V to 265V) with an excellent THD.

Features

  • VERY.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (L6561-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • L6563 - Advanced transition-mode PFC controller (ST Microelectronics)
  • L6563A - Advanced transition-mode PFC controller (ST Microelectronics)
  • L6563H - High voltage start-up transition-mode PFC (ST Microelectronics)
  • L6570A - 2-CHANNEL FLOPPY DISK READ/WRITE CIRCUITS (ST Microelectronics)
  • L6570B - 2-CHANNEL FLOPPY DISK READ/WRITE CIRCUITS (ST Microelectronics)
  • L6585D - PFC and Ballast Controller (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • L6561 - POWER FACTOR CORRECTOR
  • L6560 - POWER FACTOR CORRECTOR
  • L6560A - POWER FACTOR CORRECTOR
  • L6562 - TRANSITION-MODE PFC CONTROLLER
  • L6562A - Transition-mode PFC controller
  • L6562AT - Transition-mode PFC controller
  • L6563S - Enhanced transition-mode PFC controller
  • L6564 - 10-pin transition mode PFC controller

Full PDF Text Transcription

Click to expand full text

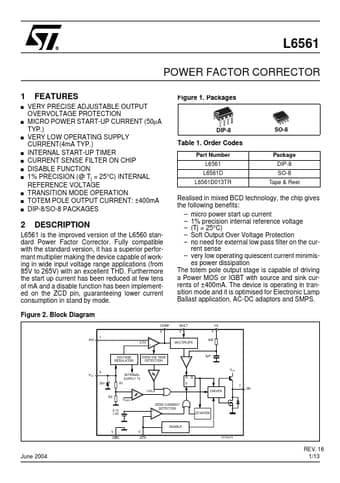

L6561 POWER FACTOR CORRECTOR 1 FEATURES ■ VERY PRECISE ADJUSTABLE OUTPUT OVERVOLTAGE PROTECTION ■ MICRO POWER START-UP CURRENT (50µA TYP.) ■ VERY LOW OPERATING SUPPLY CURRENT(4mA TYP.) ■ INTERNAL START-UP TIMER ■ CURRENT SENSE FILTER ON CHIP ■ DISABLE FUNCTION ■ 1% PRECISION (@ Tj = 25°C) INTERNAL REFERENCE VOLTAGE ■ TRANSITION MODE OPERATION ■ TOTEM POLE OUTPUT CURRENT: ±400mA ■ DIP-8/SO-8 PACKAGES 2 DESCRIPTION L6561 is the improved version of the L6560 standard Power Factor Corrector. Fully compatible with the standard version, it has a superior performant multiplier making the device capable of working in wide input voltage range applications (from 85V to 265V) with an excellent THD.
