L4885 - VERY LOWDROP VOLTAGE REGULATORS

Description

L4800 series devices are voltage regulators with a very low voltage drop (typically 0.4V at full rated current), output current up to 400mA, low quiescent current and comprehensiveon-chip protection.These devices are protected against load dump and field decay transients of ± 60V, polarity reversal

📥 Download Datasheet

📁 Similar Datasheet

  • L483EDT - CYLINDRICAL LED LAMPS (ETC)
  • L483GDT - CYLINDRICAL LED LAMPS (ETC)
  • L483HDT - CYLINDRICAL LED LAMPS (ETC)
  • L483IDT - CYLINDRICAL LED LAMPS (ETC)
  • L483SRSGW - CYLINDRICAL LED LAMPS (ETC)
  • L483YDT - CYLINDRICAL LED LAMPS (ETC)
  • L486 - IGBT Modules Sixpack/ H Bridge (IXYS Corporation)
  • L4863 - DUAL 2.2W AUDIO AMPLIFIER PLUS STEREO HEADPHONE FUNCTION (UTC)
  • L487 - Very Low Drop 5V Voltage Regulator (SGS-Ates)
Other Datasheets by STMicroelectronics
  • L4805 - VERY LOWDROP VOLTAGE REGULATORS
  • L4808 - VERY LOWDROP VOLTAGE REGULATORS
  • L4810 - VERY LOWDROP VOLTAGE REGULATORS
  • L4812 - VERY LOWDROP VOLTAGE REGULATORS
  • L482 - HALL.EFFECT PICKUP IGNITION CONTROLLER
  • L482D1 - HALL.EFFECT PICKUP IGNITION CONTROLLER
  • L484 - MAGNETIC PICKUP IGNITION CONTROLLER
  • L484D1 - MAGNETIC PICKUP IGNITION CONTROLLER

Full PDF Text Transcription

Click to expand full text

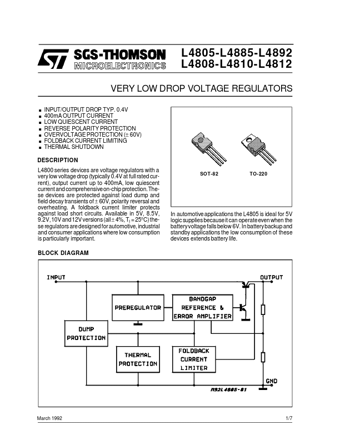

L4805-L4885-L4892 L4808-L4810-L4812 VERY LOW DROP VOLTAGE REGULATORS . . . . . . . INPUT/OUTPUT DROP TYP. 0.4V 400mA OUTPUT CURRENT LOW QUIESCENT CURRENT REVERSE POLARITY PROTECTION OVERVOLTAGE PROTECTION (± 60V) FOLDBACK CURRENT LIMITING THERMAL SHUTDOWN DESCRIPTION L4800 series devices are voltage regulators with a very low voltage drop (typically 0.4V at full rated current), output current up to 400mA, low quiescent current and comprehensiveon-chip protection.These devices are protected against load dump and field decay transients of ± 60V, polarity reversal and overheating. A foldback current limiter protects against load short circuits. Available in 5V, 8.5V, 9.
