ISO808A-1, ISO808A - Galvanic isolated octal high-side power solid state relay

STMicroelectronics

The ISO808A-1 by STMicroelectronics is a Galvanic isolated octal high-side power solid state relay. Below is the official datasheet preview.

📥 Download Datasheet

ISO808A-1 Galvanic isolated octal high-side power solid state relay by STMicroelectronics - Datasheet Preview — Official preview page of the **ISO808A-1** Galvanic isolated octal high-side power solid state relay datasheet (STMicroelectronics).

Datasheet Details

Part number	ISO808A-1, ISO808A
Manufacturer	STMicroelectronics
File Size	1.68 MB
Description	Galvanic isolated octal high-side power solid state relay
Datasheet	ISO808A-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: ISO808A-1, ISO808A. Please refer to the document for exact specifications by model.

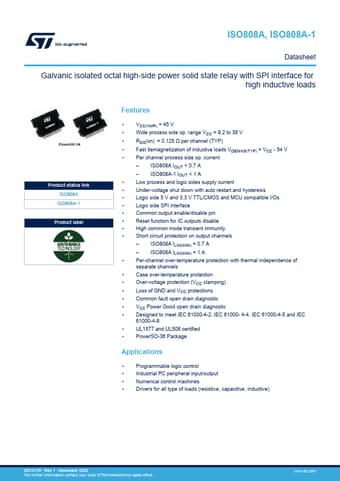

Additional preview pages of the ISO808A-1 datasheet.

ISO808A-1 Product details

Description

The ISO808A, ISO808A-1, are galvanic isolated 8-channel drivers featuring a low supply current.

Features

VCC(AMR) = 45 V.
Wide process side op. range VCC = 9.2 to 36 V.
RDS(on) = 0.125 Ω per channel (TYP).
Fast demagnetization of inductive loads VDEMAG(TYP) = VCC - 54 V.
Per channel process side op. current.
ISO808A IOUT < 0.7 A.
ISO808A-1 IOUT < 1 A.
Low process and logic sides supply current.
Under-voltage shut down with auto restart and hysteresis.
Logic side 5 V and 3.3 V TTL/CMOS and MCU comp.
