IPN1M50T-H - SLLIMM-nano small low-loss intelligent molded module IPM

STMicroelectronics

The IPN1M50T-H by STMicroelectronics is a SLLIMM-nano small low-loss intelligent molded module IPM. Below is the official datasheet preview.

📥 Download Datasheet

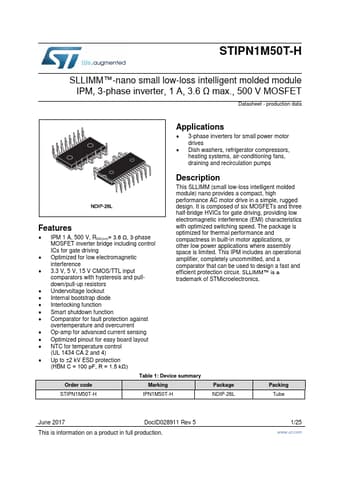

IPN1M50T-H SLLIMM-nano small low-loss intelligent molded module IPM by STMicroelectronics - Datasheet Preview — Official preview page of the **IPN1M50T-H** SLLIMM-nano small low-loss intelligent molded module IPM datasheet (STMicroelectronics).

Datasheet Details

Part number	IPN1M50T-H
Manufacturer	STMicroelectronics
File Size	1.05 MB
Description	SLLIMM-nano small low-loss intelligent molded module IPM
Datasheet	IPN1M50T-H-STMicroelectronics.pdf
Additional preview pages of the IPN1M50T-H datasheet.

IPN1M50T-H Product details

Description

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high performance AC motor drive in a simple, rugged design.

Features

IPM 1 A, 500 V, RDS(on)= 3.6 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving.
Optimized for low electromagnetic interference.
3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pulldown/pull-up resistors.
Undervoltage lockout.
Internal bootstrap diode.
Interlocking function.
Smart shutdown function.
Comparator for fault protection against overtemperature and overcurrent.
Op-amp for advanced current sensing.
