HSP051-4M5, HSP053-4M5 4-line ESD protection

HSP051-4M5 Description

I/O 1 1 GND 2 I/O 4 3 5 I/O 2 4 I/O 3 Product status link HSP051-4M5, HSP053-4M5 HSP051-4M5, HSP053-4M5 Datasheet 4-line ESD protection for high.
The HSP051-4M5 and HSP053-4M5 are a 4-channel ESD array with a rail to rail architecture designed specifically for the protection of high speed differ.

HSP051-4M5 Features

* Very compact 500 µm pitch package, for easy PCB layout
* Very-large bandwidth: 11.5 GHz (HSP051-4M5), 18 GHz (HSP053-4M5)
* Very-low capacitance: 0.35 pF (HSP051-4M5 - I/O to GND), 0.25 pF (HSP053-4M5 - I/O to GND)
* Low leakage current: < 1 nA
* High integr

HSP051-4M5 Applications

* The HSP051-4M5 and HSP053-4M5 are designed to protect against to electro-static discharge sub-micron technology circuits driving:
* HDMI 2.1, HDMI 2.0 and HDMI 1.4
* USB4, USB 3.2 Gen 2 and Gen 1
* Display port
* Digital video interface
* Serial ATA The ultra

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSP051-4M5, HSP053-4M5. Please refer to the document for exact specifications by model.

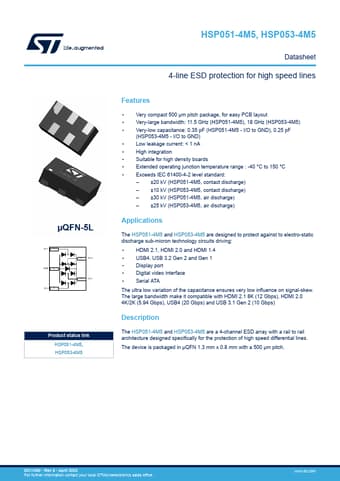

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSP051-4M5, HSP053-4M5
Manufacturer
STMicroelectronics ↗
File Size
2.32 MB
Datasheet
HSP053-4M5-STMicroelectronics.pdf
Description
4-line ESD protection
Note
This datasheet PDF includes multiple part numbers: HSP051-4M5, HSP053-4M5.
Please refer to the document for exact specifications by model.
