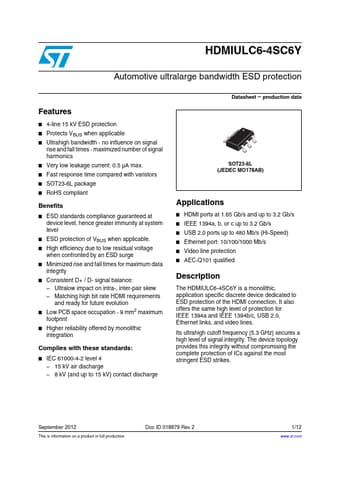

HDMIULC6-4SC6Y - Automotive ultralarge bandwidth ESD protection

Description

The HDMIULC6-4SC6Y is a monolithic, application specific discrete device dedicated to ESD protection of the HDMI connection.

It also offers the same high level of protection for IEEE 1394a and IEEE 1394b/c, USB 2.0, Ethernet links, and video lines.

Features

  • 4-line 15 kV ESD protection.
  • Protects VBUS when applicable.
  • Ultrahigh bandwidth - no influence on signal rise and fall times - maximized number of signal harmonics.
  • Very low leakage current: 0.5 µA max.
  • Fast response time compared with varistors.
  • SOT23-6L package.
  • RoHS compliant Benefits.
  • ESD standards compliance guaranteed at device level, hence greater immunity at system level.
  • ESD protection of VBUS when applicable.
  • High efficiency due to l.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HDMIULC6-4SC6 Ultra large bandwidth ESD protection ST Microelectronics
HDMIULC6-4F3 ultra-large bandwidth ESD protection ST Microelectronics
HDMI05-CL02F3 control line ESD protection ST Microelectronics
HDMIF389A1T SAW filter SHOULDER ELECTRONICS
HDMIF38A2M SAW filter SHOULDER ELECTRONICS

Other Datasheets by STMicroelectronics

Part Number Description
HDMIULC6-2M6 Ultra Low Capacitance 2 line ESD protection
HDMIULC6-2P6 Ultra Low Capacitance 2 line ESD protection
HDMI2C1-14HD ESD protection and signal conditioning
HDMI2C1-14HDS ESD protection and signal conditioning
HDMI2C1-6C1 ESD protection and signal booster

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
HDMIULC6-4SC6Y Automotive ultralarge bandwidth ESD protection Features ■ 4-line 15 kV ESD protection ■ Protects VBUS when applicable ■ Ultrahigh bandwidth - no influence on signal rise and fall times - maximized number of signal harmonics ■ Very low leakage current: 0.5 µA max. ■ Fast response time compared with varistors ■ SOT23-6L package ■ RoHS compliant Benefits ■ ESD standards compliance guaranteed at device level, hence greater immunity at system level ■ ESD protection of VBUS when applicable.
