HCF4051 - Single 8-channel analog multiplexer/demultiplexer

Name: HCF4051
SKU: HCF4051-85548

STMicroelectronics

📥 Download Datasheet

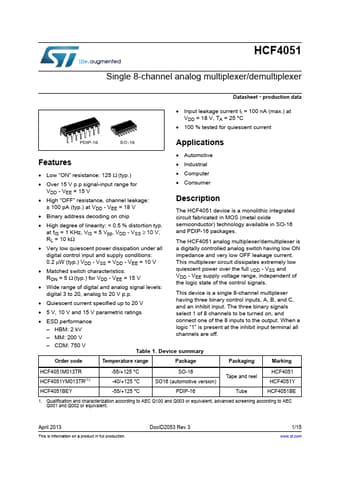

HCF4051 Datasheet Preview — Preview of HCF4051 PDF

Datasheet Details

Part number	HCF4051
Manufacturer	STMicroelectronics
File Size	374.11 KB
Description	Single 8-channel analog multiplexer/demultiplexer
Datasheet	HCF4051_STMicroelectronics.pdf

HCF4051 Product details

Description

The HCF4051 device is a monolithic integrated circuit fabricated in MOS (metal oxide semiconductor) technology available in SO-16 and PDIP-16 packages.

Features

Automotive.
Industrial.
Low “ON” resistance: 125 Ω (typ. ).
Over 15 V p. p signal-input range for VDD - VEE = 15 V.
High “OFF” resistance, channel leakage: ± 100 pA (typ. ) at VDD - VEE = 18 V.
Binary address decoding on chip.
High degree of linearity: < 0.5 % distortion typ. at fIS = 1 KHz, VIS = 5 Vpp, VDD - VSS ≥ 10 V, RL = 10 kΩ.
Very low quiescent power dissipation under all digital control input and supply conditions:.
