GP14NC60KD

The GP14NC60KD is STGP14NC60KD designed by STMicroelectronics.

Product Overview

STMicroelectronics

📥 Download Datasheet

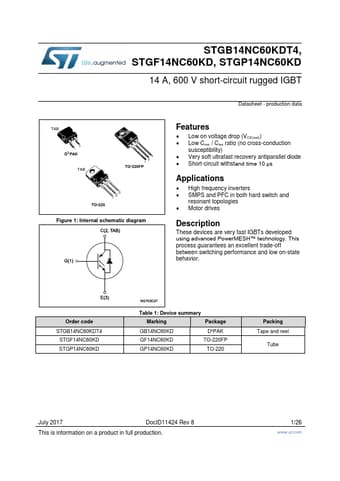

GP14NC60KD STGP14NC60KD by STMicroelectronics - Datasheet Preview — Datasheet preview – GP14NC60KD

Datasheet Details

Part number	GP14NC60KD
Manufacturer	STMicroelectronics
File Size	1.43 MB
Description	STGP14NC60KD
Datasheet	GP14NC60KD-STMicroelectronics.pdf
Additional preview pages of the GP14NC60KD datasheet.

Product details

Description

These devices are very fast IGBTs developed using advanced PowerMESH™ technology.

Features

Low on voltage drop (VCE(sat)).
Low Cres / Cies ratio (no cross-conduction susceptibility).
Very soft ultrafast recovery antiparallel diode.
Short-circuit withstand time 10 μs.
