ETL9344 - 4-BIT NMOS MICROCONTROLLERS

Product Overview

STMicroelectronics

Datasheet Details

Part number	ETL9344
Manufacturer	STMicroelectronics
File Size	321.50 KB
Description	4-BIT NMOS MICROCONTROLLERS
Datasheet	ETL9344 Datasheet

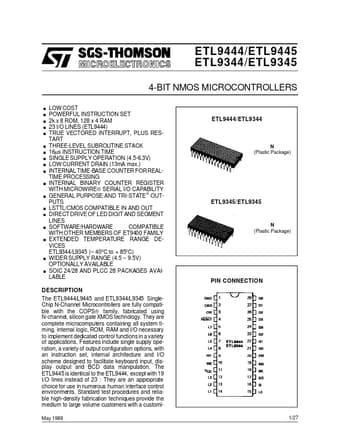

Additional preview pages of the ETL9344 datasheet.

Product details

Description

The ETL9444/L9445 and ETL9344/L9345 SingleChip N-Channel Microcontrollers are fully compatible with the COPS® family, fabricated using N-channel, silicon gate XMOS technology.

Features

include single supply operation, a variety of output configuration options, with an instruction set, internal architecture and I/O scheme designed to facilitate keyboard input, display output and BCD data manipulation. The ETL9445 is identical to the ETL9444, except with 19 I/O lines instead of 23 : They are an appropriate choice for use in numerous human interface control environments. Standard test procedures and reliable high-density fabrication techniques provide the medium to large volume c.
