ESDAXLC6-1BT2Y - transient surge voltage suppressor

STMicroelectronics

The ESDAXLC6-1BT2Y by STMicroelectronics is a transient surge voltage suppressor. Below is the official datasheet preview.

📥 Download Datasheet

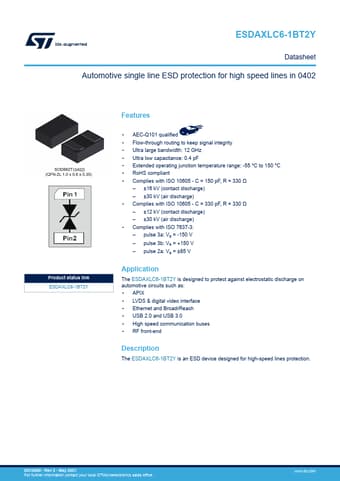

ESDAXLC6-1BT2Y transient surge voltage suppressor by STMicroelectronics - Datasheet Preview — Official preview page of the ESDAXLC6-1BT2Y transient surge voltage suppressor datasheet (STMicroelectronics).

Datasheet Details

Part number	ESDAXLC6-1BT2Y
Manufacturer	STMicroelectronics
File Size	605.87 KB
Description	transient surge voltage suppressor
Datasheet	ESDAXLC6-1BT2Y-STMicroelectronics.pdf
Additional preview pages of the ESDAXLC6-1BT2Y datasheet.

ESDAXLC6-1BT2Y Product details

Description

The ESDAXLC6-1BT2Y is an ESD device designed for high-speed lines protection.

Features

AEC-Q101 qualified.
Flow-through routing to keep signal integrity.
Ultra large bandwidth: 12 GHz.
Ultra low capacitance: 0.4 pF.
Extended operating junction temperature range: -55 °C to 150 °C.
RoHS compliant.
Complies with ISO 10605 - C = 150 pF, R = 330 Ω.
±16 kV (contact discharge).
±30 kV (air discharge).
Complies with ISO 10605 - C = 330 pF, R = 330 Ω.
±12 kV (contact discharge).
±30.
