ESDA14V2-4BF1 - QUAD BIDIRECTIONAL TRANSIL-TM ARRAY

Description

The ESDA14V2-4BF1 is a monolithic array designed to protect up to 4 lines in a bidirectional way against ESD transients.

The device is ideal for situations where board space saving is requested.

Features

  • 4 Bidirectional Transil™ functions.
  • ESD Protection: IEC61000-4-2 level 4.
  • Stand off voltage: 12 V MIN.
  • Low leakage current < 1 µA.
  • 50W Peak pulse power (8/20µs).
  • GND.

📥 Download Datasheet

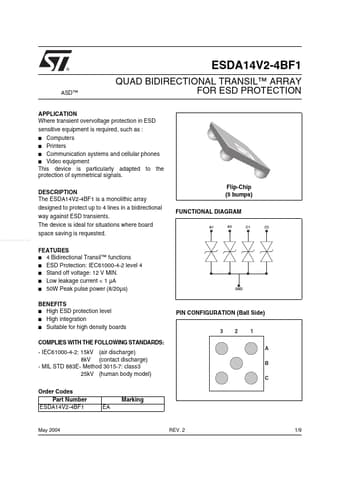

Datasheet preview – ESDA14V2-4BF1

Datasheet Details

Part number ESDA14V2-4BF1
Manufacturer STMicroelectronics
File Size 177.51 KB
Description QUAD BIDIRECTIONAL TRANSIL-TM ARRAY
Datasheet download datasheet ESDA14V2-4BF1 Datasheet
Additional preview pages of the ESDA14V2-4BF1 datasheet.

📁 Similar Datasheet

  • ESDA14V2-4BF3 - Quad bidirectional TRANSIL array (ST Microelectronics)
  • ESDA14V2-1BF3 - TVS Clamping Array (ST Microelectronics)
  • ESDA14V2L - ESD Protection Diodes (Kexin)
  • ESDA1222CP3 - 2-Line Bi-directional Low Capacitance TVS Diode (Leiditech)
  • ESDA0504CW - Quad TVS Diode Array (Leiditech)
  • ESDA0504T5 - LOW CAPACITANCE TVS DIODE ARRAY (Leiditech)
  • ESDA0506P6 - LOW CAPACITANCE TVS DIODE ARRAY (Leiditech)
  • ESDA05C-4 - LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • ESDA05C-5 - LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • ESDA05CL - Transient Voltage Suppressors (SeCoS)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
® ESDA14V2-4BF1 QUAD BIDIRECTIONAL TRANSIL™ ARRAY FOR ESD PROTECTION ASD™ APPLICATION Where transient overvoltage protection in ESD sensitive equipment is required, such as : ■ ■ Computers Printers ■ Communication systems and cellular phones ■ Video equipment This device is particularly adapted to the protection of symmetrical signals. DESCRIPTION The ESDA14V2-4BF1 is a monolithic array designed to protect up to 4 lines in a bidirectional way against ESD transients. The device is ideal for situations where board space saving is requested. www.DataSheet4U.com Flip-Chip (5 bumps) FUNCTIONAL DIAGRAM A1 A3 C1 C3 FEATURES 4 Bidirectional Transil™ functions ■ ESD Protection: IEC61000-4-2 level 4 ■ Stand off voltage: 12 V MIN.
