ACS102-5T1, ACS-102 - AC LINE SWITCH

STMicroelectronics

Datasheet Details

Part number	ACS102-5T1, ACS-102
Manufacturer	STMicroelectronics
File Size	103.12 KB
Description	AC LINE SWITCH
Datasheet	ACS-102-5TX.pdf
Note	This datasheet PDF includes multiple part numbers: ACS102-5T1, ACS-102. Please refer to the document for exact specifications by model.

The ACS102 belongs to the AC line switch family built around the ASD™ concept.

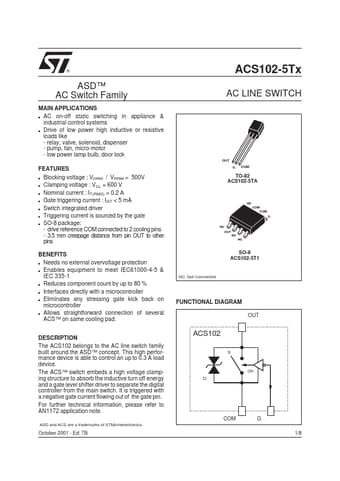

s s G COM s s s s s Blocking voltage : VDRM / VRRM = 500V Clamping voltage : VCL = 600 V Nominal current : IT(RMS) = 0.2 A Gate triggering current : IGT < 5 mA Switch integrated driver Triggering current is sourced by the gate SO-8 package: - drive reference COM connected to 2 cooling pins - 3.5 mm creepage distance from pin OUT to other pins TO-92 ACS102-5TA NC COM COM G NC OUT NC NC.
