Datasheet Details
Part number:
78M10A, 78M05
Manufacturer:
File Size:
1.05 MB
Description:
Positive voltage regulators.
Note:
This datasheet PDF includes multiple part numbers: 78M10A, 78M05.
Please refer to the document for exact specifications by model.

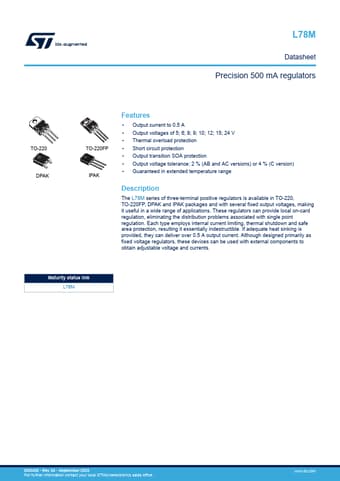

78M10A, 78M05, POSITIVE VOLTAGE REGULATORS
The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications.
These regulators can provide local on-card regulation, eliminating the distribution problems associ
78M10A Features
* Output current to 0.5 A
* Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
* Thermal overload protection
* Short circuit protection
* Output transition SOA protection
* Output voltage tolerance: 2% (AB and AC versions) or 4% (C version)
* Guar
