78L12C, 78L05ABUTR POSITIVE VOLTAGE REGULATORS

78L12C Description

TO-92 SO-8 SOT-89 Maturity status link L78L L78L Datasheet Positive voltage regulators .
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible.

78L12C Features

* Output current up to 100 mA
* Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V thermal overload protection
* Short-circuit protection
* No external components are required

78L12C Applications

* including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make highcurrent voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 78L12C, 78L05ABUTR. Please refer to the document for exact specifications by model.

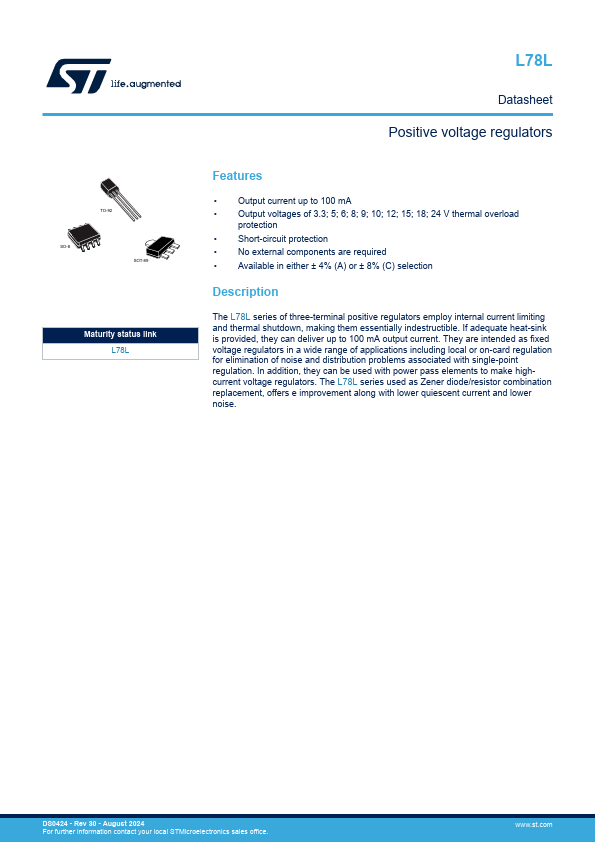

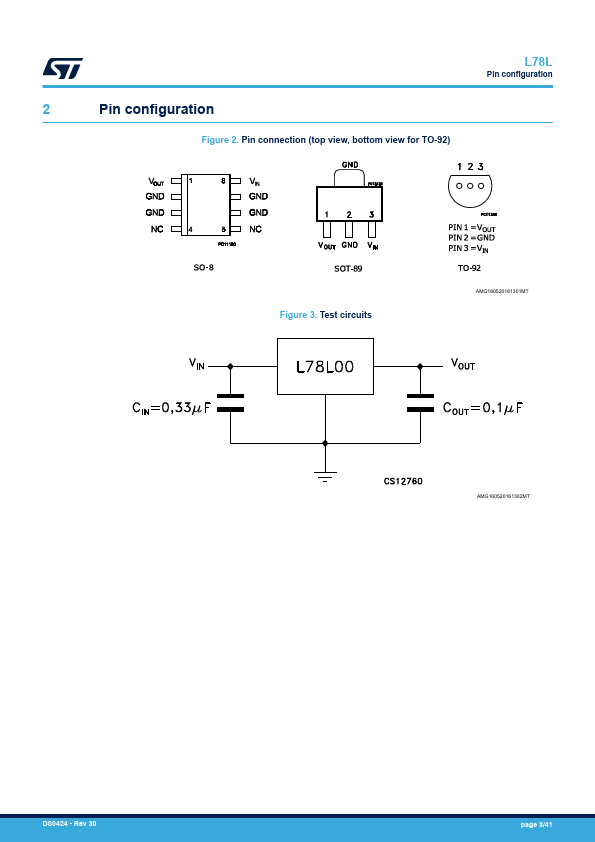

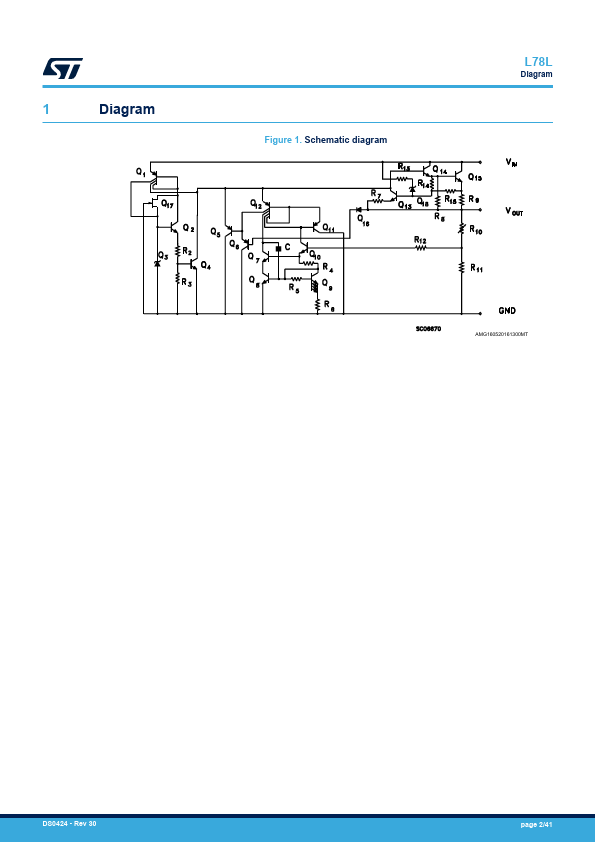

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
78L12C, 78L05ABUTR
Manufacturer
STMicroelectronics ↗
File Size
814.12 KB
Datasheet
78L05ABUTR_STMicroelectronics.pdf
Description
POSITIVE VOLTAGE REGULATORS
Note
This datasheet PDF includes multiple part numbers: 78L12C, 78L05ABUTR.
Please refer to the document for exact specifications by model.
