54HC175 - Rad-hard high speed 2 to 6V CMOS logic

Download the 54HC175 datasheet PDF (54HC00 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for rad-hard high speed 2 to 6v cmos logic.

Description

The M54HCxxx and M54HCTxxx series is composed of CMOS functions specifically designed to meet the radiation requirements of the aerospace industry.

They include a large set of gates, flip-flops, multiplexers, counters, bus interface and several other functions.

Features

  • ESCC qualified.
  • 7 V Absolute maximum ratings.
  • 2 V to 6 V operating voltage for CMOS M54HCxxx series.
  • 4.5 V to 5.5 V operating voltage for TTL M54HCTxxx series.
  • Ceramic hermetic packages.
  • -55 °C to +125 °C operating temperature range.
  • Radiation hardness:.
  • TID : 50 krad(Si).
  • SEL immune up to 125 MeV. cm²/mg.
  • ESCC qualified.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (54HC00-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 54HC175 - Quadruple D-Type Flip-Flops (Texas Instruments)
  • 54HC173 - Quad D-Type Flip-Flop (Texas Instruments)
  • 54HC174 - Hex D-Type Flip-Flops (Texas Instruments)
  • 54HC10 - Triple 3-Input NAND Gates (Texas Instruments)
  • 54HC109 - Dual J-K Positive-Edge-Triggered Flip-Flops (Texas Instruments)
  • 54HC11 - Triple 3-Input AND Gate (Texas Instruments)
  • 54HC112 - Dual J-K Negative-Edge-Triggered Flip-Flops (Texas Instruments)
  • 54HC125 - Quadruple Buffers (Texas Instruments)
  • 54HC132 - Quadruple 2-Input NAND Gates (Texas Instruments)
  • 54HC133 - 13-Input NAND Gate (National Semiconductor)
Other Datasheets by STMicroelectronics
  • 54HC174 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC10 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC109 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC11 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC123 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC125 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC132 - Rad-hard high speed 2 to 6V CMOS logic
  • 54HC138 - Rad-hard high speed 2 to 6V CMOS logic

Full PDF Text Transcription

Click to expand full text

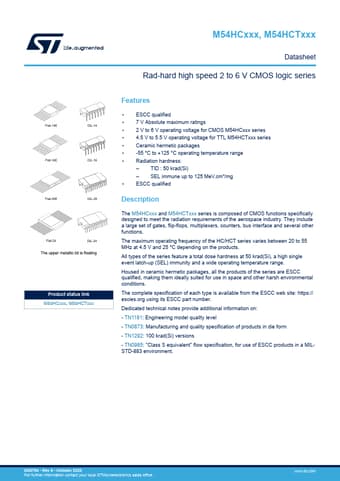

Product status link M54HCxxx, M54HCTxxx M54HCxxx, M54HCTxxx Datasheet Rad-hard high speed 2 to 6 V CMOS logic series Features • ESCC qualified • 7 V Absolute maximum ratings • 2 V to 6 V operating voltage for CMOS M54HCxxx series • 4.5 V to 5.5 V operating voltage for TTL M54HCTxxx series • Ceramic hermetic packages • -55 °C to +125 °C operating temperature range • Radiation hardness: – TID : 50 krad(Si) – SEL immune up to 125 MeV.cm²/mg • ESCC qualified Description The M54HCxxx and M54HCTxxx series is composed of CMOS functions specifically designed to meet the radiation requirements of the aerospace industry. They include a large set of gates, flip-flops, multiplexers, counters, bus interface and several other functions.
