27512 - NMOS 512K 64K x 8 UV EPROM

Name: 27512
SKU: 27512-489500

STMicroelectronics

The 27512 by STMicroelectronics is a NMOS 512K 64K x 8 UV EPROM. Below is the official datasheet preview.

Datasheet Details

Part number	27512
Manufacturer	STMicroelectronics
File Size	116.44 KB
Description	NMOS 512K 64K x 8 UV EPROM
Datasheet	27512_STMicroelectronics.pdf

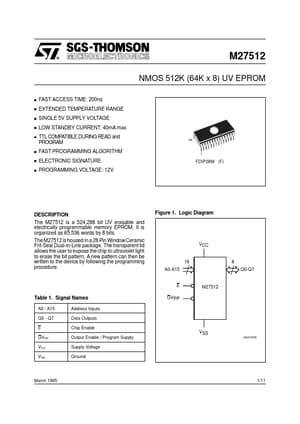

Additional preview pages of the 27512 datasheet.

The M27512 is a 524,288 bit UV erasable and electrically programmable memory EPROM.

a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows : a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 Q0 Q1 Q2 VSS 28 1 27 2 26 3 25 4 24 5 23 6 22 7 M27512 21 8 20 9 19 10 18 11 17 12 13 16 14 15 AI00766 VCC A14 A13 A8 A9 A11 GVPP A10 E Q7 Q6 Q5 Q4 Q3 DEVICE.
