25P10VP - M25P10

Description

The M25P10 is an 1 Mbit Paged Flash Memory fabricated with STMicroelectronics High Endurance CMOS technology.

The memory is accessed by a simple SPI bus compatible serial interface.

The bus signals are a serial clock input (C), a serial data input (D) and a serial data output (Q).

Features

  • of the device are summarized in Table 3. Figure 4. Hold Condition Activation CLOCK HOLD PIN MEMORY STATUS ACTIVE HOLD ACTIVE HOLD ACTIVE AI02029B 3/21 M25P10 Figure 5. M25P10-Compatible SPI Modes CPOL CPHA 00 C 11 C D or Q MSB LSB AI01438 Clock Polarity (CPOL) and Clock Phase (CPHA) with SPI Bus As shown in Figure 5, the M25P10 can be driven by a microcontroller with its SPI peripheral running in either of the two following modes: (CPOL, CPHA) = (’0’, ’0’) or (CPOL, CPHA) = (’1.

📥 Download Datasheet

Datasheet preview – 25P10VP

📁 Similar Datasheet

  • 25P10A - 1Mb 3V Serial Flash Embedded Memory (Micron)
  • 25P10AV - M25P10AV (ST Microelectronics)
  • 25P16 - W25P16 (Winbond)
  • 25P32 - EN25P32 (Eon Silicon Solution)
  • 25P40 - M25P40 (ST Microelectronics)
  • 25P40 - 3V 4Mb Serial Flash Embedded Memory (Micron)
  • 25P40VP - 3V 4Mb Serial Flash Embedded Memory (Micron)
  • 25P64 - EN25P64 (Eon Silicon Solution)
  • 25P80 - W25P80 (Winbond)
  • 25PPC405EP - IBM25PPC405EP (IBM Microelectronics)
Other Datasheets by STMicroelectronics
  • 25P10 - 1 Mbit Low Voltage Paged Flash Memory
  • 25P05 - M25P05
  • 25P20VP - Serial Flash Memory
  • 25P40VP - Serial Flash Memory

Full PDF Text Transcription

Click to expand full text

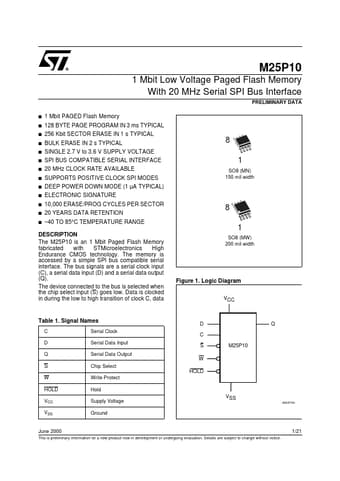

M25P10 1 Mbit Low Voltage Paged Flash Memory With 20 MHz Serial SPI Bus Interface PRELIMINARY DATA s 1 Mbit PAGED Flash Memory s 128 BYTE PAGE PROGRAM IN 3 ms TYPICAL s 256 Kbit SECTOR ERASE IN 1 s TYPICAL s BULK ERASE IN 2 s TYPICAL s SINGLE 2.7 V to 3.6 V SUPPLY VOLTAGE s SPI BUS COMPATIBLE SERIAL INTERFACE s 20 MHz CLOCK RATE AVAILABLE s SUPPORTS POSITIVE CLOCK SPI MODES s DEEP POWER DOWN MODE (1 µA TYPICAL) s ELECTRONIC SIGNATURE s 10,000 ERASE/PROG CYCLES PER SECTOR s 20 YEARS DATA RETENTION s –40 TO 85°C TEMPERATURE RANGE DESCRIPTION The M25P10 is an 1 Mbit Paged Flash Memory fabricated with STMicroelectronics High Endurance CMOS technology. The memory is accessed by a simple SPI bus compatible serial interface.
